WHC 150-12V AGM solar gel battery deep cycle 12V 150Ah

solar energy storage

Benefits of WHC 150-12 12V 150AH solar gel electricity

WHC Solar gel lead-acid battery series is designed as an advanced series, with a patented appearance design certificate, to ensure that each product is directly supplied by genuine products. solar gel battery It can provide reliable performance for uninterruptible power supply and emergency power supply system.

What are the performances of solar gel battery ?

WHC 150-12 12v 150ah gel valve-regulated lead-acid battery is a rechargeable battery that can be installed in any position. If overload or incorrect charging procedure produces too much gas release safety valve, it has low internal resistance and high efficiency Discharge characteristics, detect the internal pressure rise to release gas, and then automatically reposition. The internal pressure can be released when overcharged.solar gel battery No need to add water or electrolyte during the entire service life.

Maintenance-free function of solar gel battery

During the service life, the electrolyte level or water is not checked. Through the effective reaction between hydrogen and oxygen, the optimal working temperature is 20 °C to 25 °C, and the solar gel battery pack has a lasting effect on the service life under normal conditions (20°C-25°C). And no maintenance is required, which reduces the complexity of use and makes the use more convenient.

12v solar panel with battery

solar gel Battery design guarantee

Electrolyte leakage occurs on the terminal or housing. The use of high-strength plastic, water-absorbing glass mat technology (AGM) diaphragm; material with oxygen diffusion and maximum diffusion response to active substances in the plate. The separator also keeps the positive and negative plates to keep the electrolyte to minimize the possibility of acid leakage. solar gel battery ABS containers have excellent impact resistance, heat resistance, low temperature resistance, chemical resistance and electrical properties.

Solar gel battery product parameters

Battery size: 12V 150Ah
Model: WHC150-12 (solar gel battery 12v 150ah)
Weight: 34.5 kg
Capacity: 150AH
Voltage: 12V
Maximum charging current: 40A
Internal resistance (full charge, 25°C) about 3.3mΩ
Maximum discharge current: 1200A (5 seconds)

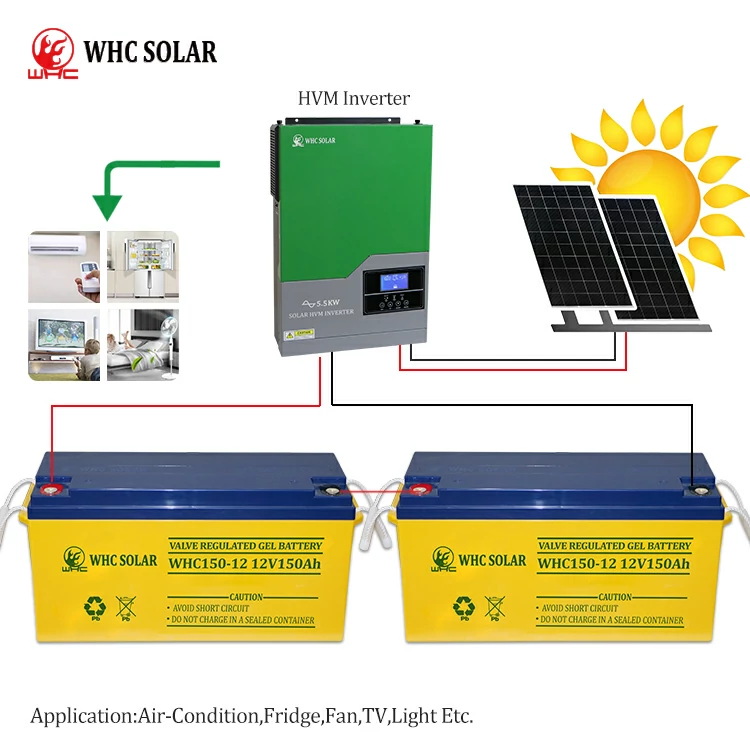

Application

 used in large portable electrical equipment, off-grid power systems, hybrid storage systems, etc.

solar panel with battery for home
