Basic parameters of the surface solar pump system
Model: WHC 500-48-14-15LP
Max head rate: 14m
Speed head: 10m
Max flow rate: 15000L/H
Rated flow: 6000L/H
Solar panel: single crystal 120W*8PCS
Motor power: 500W
Mppt controller: 48V 15A
Working time:During the sunshine
Export inch: 2"
Motor speed: 2850r/min
Solar pump body material: steel

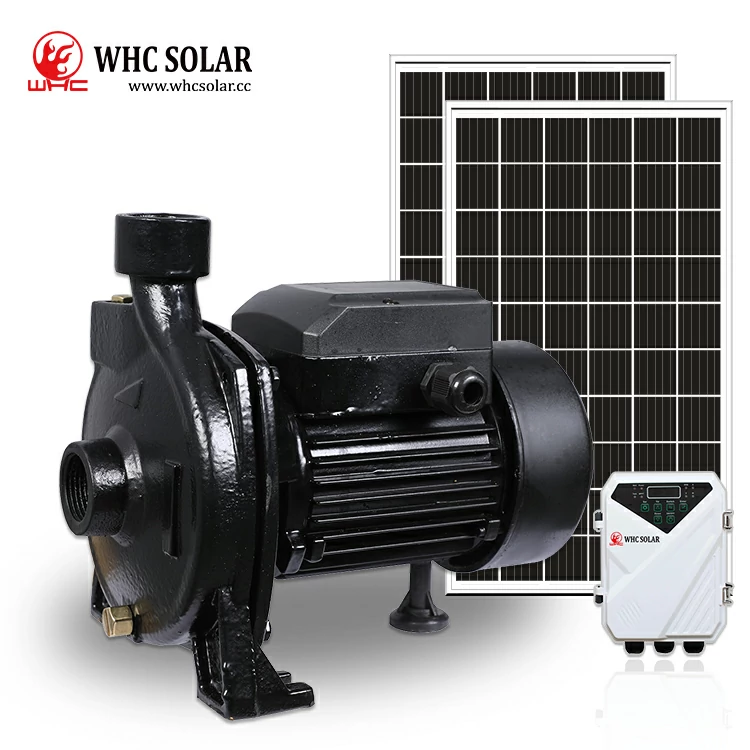

WHC 500-48-14-15LP Solar Surface Water Pump
Our surface solar water pump system comes standard with high-power motors, as well as high-quality accessories such as monocrystalline silicon solar panels and solar MPPT controllers.
What are the configuration facilities of the surface solar water pump system
Our solar ground pump system comes standard with high-power motors, and high-quality accessories such as monocrystalline silicon solar panels and solar MPPT controllers.
Monocrystalline silicon solar panels
8PCS*120W monocrystalline solar panels can track solar energy to the maximum, realize off-grid DC work, and provide pumping efficiency for water pumps more quickly, with a service life of 25 years and a warranty of 10 years.
Solar MPPT Controller
When running on solar land in real time, the mppt controller can protect the voltage and current output, making it safer and more efficient during use.
Features of off grid solar water pump
It has anti-corrosion, anti-rust, easy installation, high efficiency, maintenance-free performance, etc., ensuring low noise, high exhaust efficiency and long service life during the use of solar pool pumps.
Uses of solar pumps
Solar pumps are widely used, such as rivers, lakes, swimming pools, irrigation, ponds, streams, pastures, etc.
