535m 18000L/H 30HP solar submersible pump specifications
Model: WHC 10/37-22/30HP/6" solar submersible pump
Max head rate: 535m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 22000W
Mppt inverter: 30000w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
448m 18000L/H 24HP solar submersible pump specifications
Model: WHC 10/31-18/24HP/6" solar submersible pump
Max head rate: 448m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 18500W
Mppt inverter: 22000w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
376m 18000L/H 24HP solar submersible pump specifications
Model: WHC 10/26-15/24HP/6" solar submersible pump
Max head rate: 376m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 15000W
Mppt inverter: 22000w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
347m 18000L/H 17.5HP solar submersible pump specifications
Model: WHC 10/24-13/17.5HP/6" solar submersible pump
Max head rate: 347m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 13000W
Mppt inverter: 15000w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
289m 18000L/H 15HP solar submersible pump specifications
Model: WHC 10/22-11/15HP/6" solar submersible pump
Max head rate: 289m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 11000W
Mppt inverter: 13000w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
231m 18000L/H 12.5HP solar submersible pump specifications
Model: WHC 10/16-9.2/12.5HP/6" solar submersible pump
Max head rate: 231m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 9200W
Mppt inverter: 11000w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
206m 18000L/H 10HP solar submersible pump specifications
Model: WHC 10/32-7.5/10HP solar submersible pump
Max head rate: 206m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 7500W
Mppt inverter: 9200w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
170m 18000L/H 7.5HP solar submersible pump specifications
Model: WHC 10/25-5.5/7.5HP solar submersible pump
Max head rate: 170m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 5500W
Mppt inverter: 7500w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
109m 18000L/H 4HP solar submersible pump specifications
Model: WHC 10/17-3/4HP solar submersible pump
Max head rate: 170m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 3300W
Mppt inverter: 5500w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
79m 18000L/H 3HP solar submersible pump specifications
Model: WHC 10/12-2.2/3HP solar submersible pump
Max head rate: 79m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 2200W
Mppt inverter: 3000w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
55m 18000L/H 2HP solar submersible pump specifications
Model: WHC 10/10-1.5/2HP solar submersible pump
Max head rate: 55m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 1500W
Mppt inverter: 2200w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
48m 18000L/H 1.5HP solar submersible pump specifications
Model: WHC 10/8-1.1/1.5HP solar submersible pump
Max head rate: 48m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 1100W
Mppt inverter: 1500w
Solar input voltage: 330V
Open circuit voltage (Voc): 500v
Working time:During the sunshine
Pump material: 304 stainless steel
36m 18000L/H 1HP solar submersible pump specifications
Model: WHC 10/6-0.76/1HP solar submersible pump
Max head rate: 36m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 750W
Mppt inverter: 1100w
Solar input voltage: 160V
Open circuit voltage (Voc): 230v
Working time:During the sunshine
Pump material: 304 stainless steel
24m 18000L/H 0.75HP solar submersible pump specifications
Model: WHC 10/4-0.55/0.75HP solar submersible pump
Max head rate: 24m
Max flow rate: 18000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper Motor power: 750W
Mppt inverter: 1100w
Solar input voltage: 160V
Open circuit voltage (Voc): 230v
Working time:During the sunshine
Pump material: 304 stainless steel

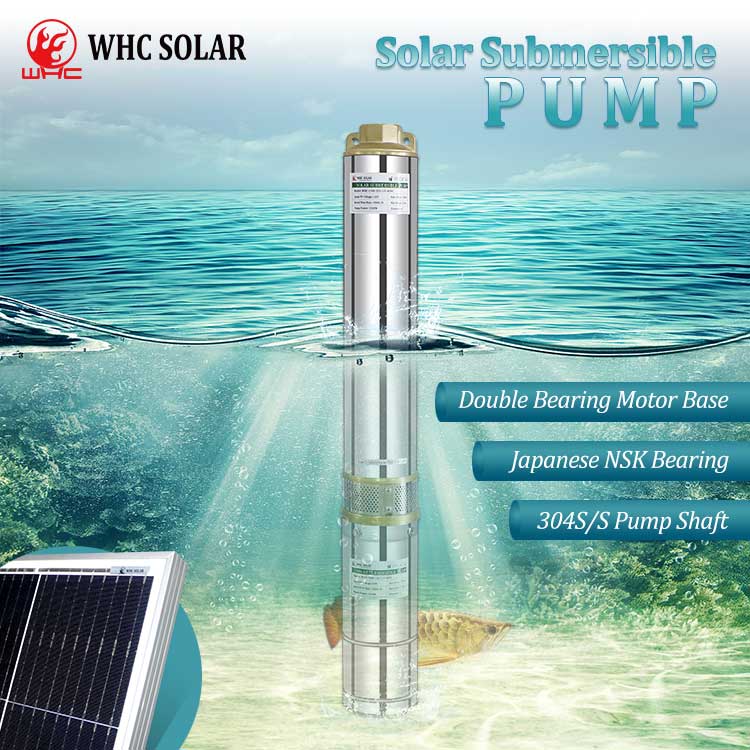

WHC 18000L 0.75 to 30HP 24 to 535m AC power frequency solar submersible pump system
The solar submersible system of WHC 18000L consists of solar panels, solar pump inverters and water pumps. The solar submersible pump system directly converts solar energy into electrical energy, provides electrical energy to provide alternating current for the submersible pump, and then drives the motor to drive the water pump to pump water from deep wells, rivers, lakes and other water sources. It is suitable for use in different areas such as insufficient power supply, remote and arid areas.
Features of high-quality three-phase MPPT solar water pump inverter
Solar water pump inverter, also known as solar variable frequency drive (VFD), converts the direct current of solar panels into alternating current, and drives various AC motor pumps (submersible pumps, irrigation pumps, deep well pumps, etc.). Our three-phase solar water pump inverter combines many innovative features and very good usability. The entire three-phase solar pump inverter control system maximizes the output power of the photovoltaic array.
Submersible pump high-efficiency monocrystalline solar panel
The highest photoelectric conversion efficiency of monocrystalline silicon solar is 24%, which is the highest photoelectric conversion efficiency of all types of solar cells. It is a device that uses the photovoltaic effect to directly convert solar energy into electrical energy. It has three advantages: permanent, clean and flexible. Solar panels have a long life. As long as there is sunlight, solar panels can be used, a one-time investment and long-term use.
Solar water pump AC permanent magnet brushless motor
Permanent magnet brushless motors have excellent speed regulation performance and overcome the shortcomings of low reliability when AC motors are running. Moreover, it is small in size, light in weight and cost-effective. It can ensure that the solar water pump has an efficient operation mode during use.
Advantages and characteristics of solar pumping system
Our WHC 18000L =18 ton solar water pump is reliable, economical and has a long service life. The pump has low maintenance costs and almost no maintenance. At the same time, 304 stainless steel is used to make the water pump work for a long time underneath. Not easy to rust. It has good anti-corrosion, anti-rust and anti-corrosion properties. Will not cause water pollution and noise. It is an environmentally friendly solar pumping system.
Multiple applications of power frequency solar water pumps
The main application of power frequency solar water pump is agricultural irrigation. According to the needs of the farm, the water is stored in the water tank and then directly irrigated from the water in the reservoir. Other applications include household use in remote areas, livestock water supply, water plant breeding, government projects and desert greening.
