Product Model:
Rated DC load current :60A
Self consumption:2W
Max.Conversion Efficiency:98%
Solar System Voltage:
12V/24V/36V/48V Auto work
PV Operating Voltage:
35～150Vdc@24V
Max. PV input power:
12V 900W ,24V 1800W,36V 2600W,48V 3400W,60A

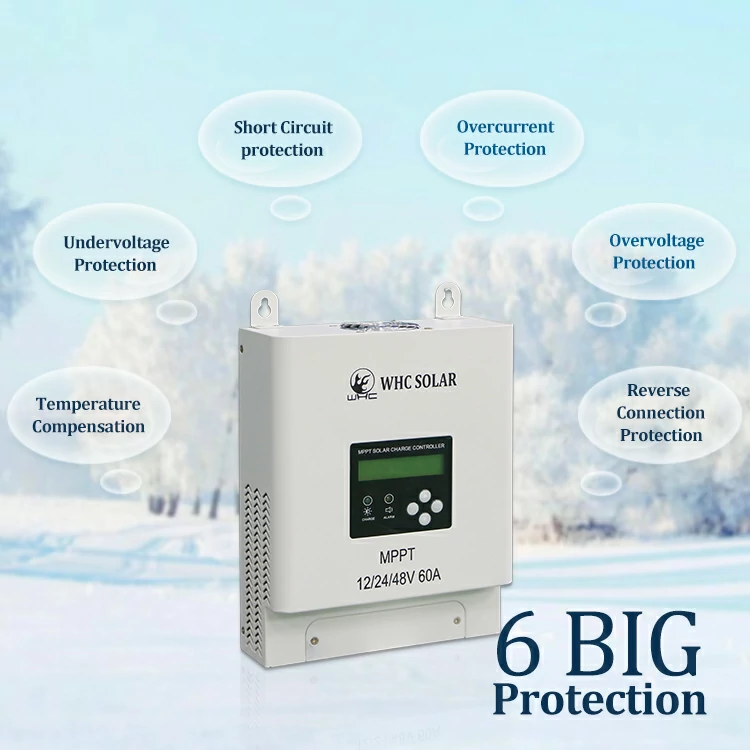

Protection:
photovoltaic array short circuit, overcharging, battery polarity reversal, short circuit of output
Battery charging:
Low voltage reconnect voltage:12.5V
Battery Type:
Sealed Gel AGM Flooded Lithium Battery
Charging algorithm:
level 4: batch, absorption, floating, and balanced charging
Bulk charging voltage:
Seal: 14.4 VAGM 14.2 V Gel: 14.2 V Flooded: 14.6 V custom: 10-15V
Float charge voltage:
Sealed/Gel/AGM:13.8V Flooded:13.7V User defined:10-15V
Equalize charge voltage:
Sealed 14.6V AGM:14.8V Flooded:14.9V
Load disconnect voltage:
10.5V ～12V Adjustable
Temperature compensation:
5MV/℃/2V with BTS
Communication port:
RS485(standard) Ethernet RS232(is optional)
Physical:
- Net weight :6.5kg
- Gross weight:7.3kg
- Dimension:420*320*215MM
- Cooling:Heatsink cooling
- Enclosure:IP54
Environment:
- Ambient operating temperature:-25℃～60℃
- Storage Temperature:-40℃～80℃
- Humidity :100% non-condensing
- Warranty:Two years
Features
- 12V/24V/48V automatic conversion, the controller automatically adapts to the battery voltage without manual adjustment.

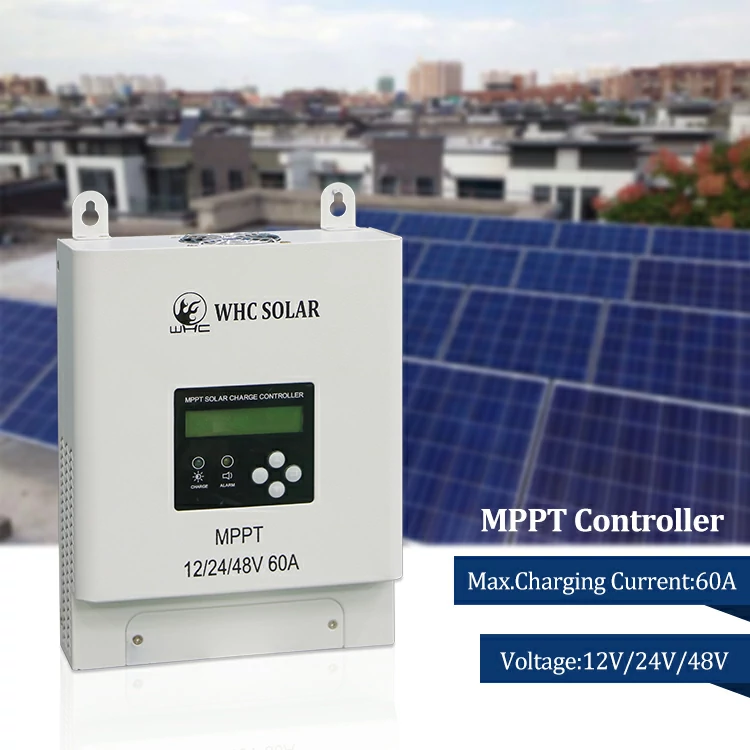

- Maximum power is 60A. charging current, maximum. 150VPV open circuit voltage.
- WHCSOLAR60AMPPTA-F Series controllers are designed for solar applications, provide efficient, safe, multi-stage charging, extended battery life， and ensure peak performance of solar packs. Each Charge Controller allows customized battery recharging.

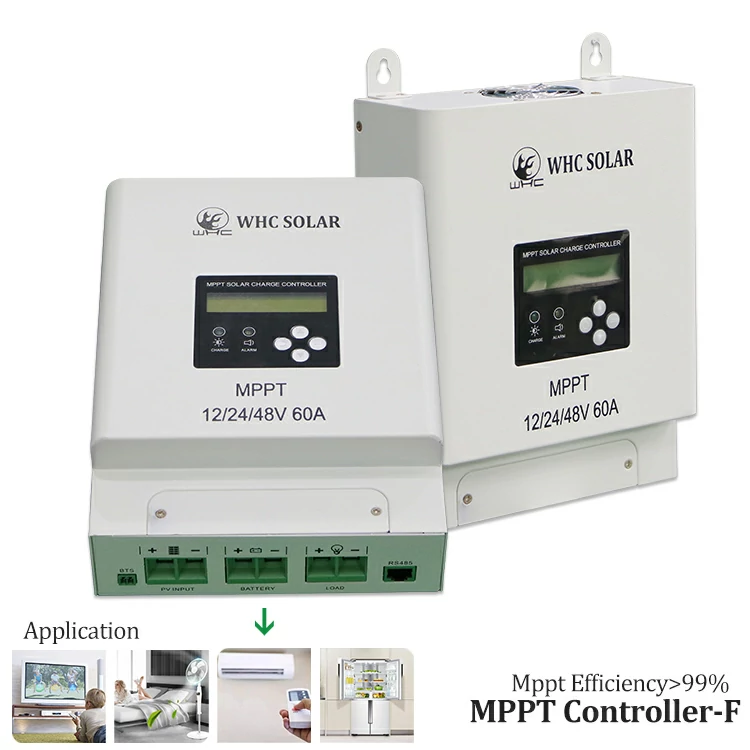

- MPPT efficiency> 99%, peak conversion efficiency> 98%
Understand 60a mppt solar charge controller in the shortest time.
If you are interested in off-grid solar MPPT solar charge controller, then this article is for you today, I will show you a 60A Mppt Solar Charge Controller.
What Everybody Ought to Know About solar charge controller types.

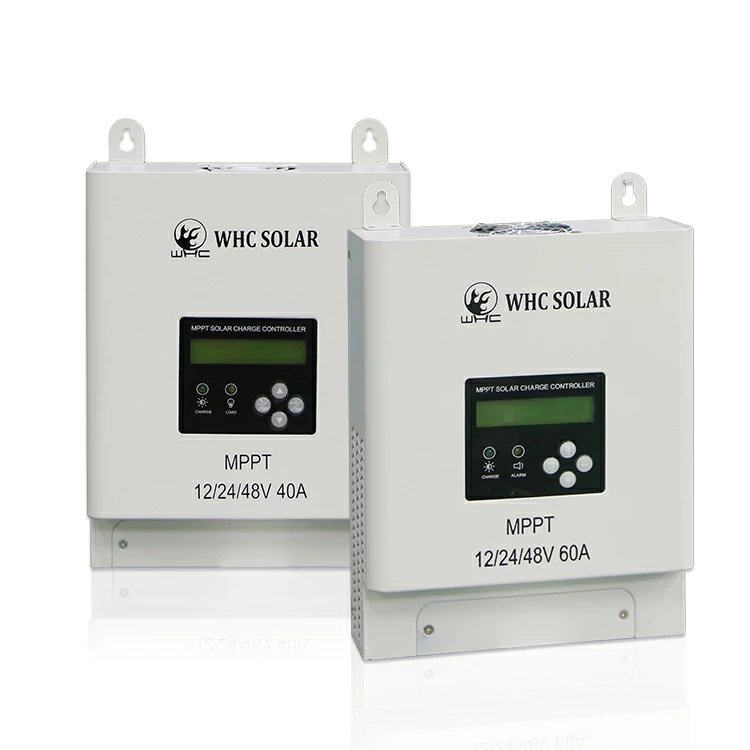

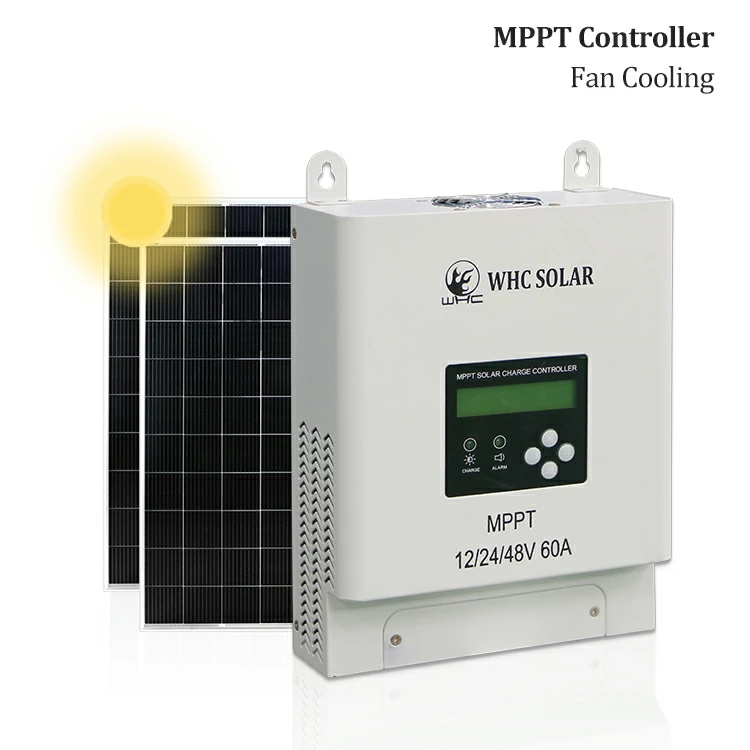

It is well-made, cost-effective, and has high buyer satisfaction. This device is also sold in a 30A-100A charge controller model, and it uses aluminum alloy metal thermal conductivity to automatically dissipate heat. They are very safe to use, and they have more dimensions.
WHC 60A MPPT Solar Charge Controller Secret
They are used to charge the battery. It will automatically adjust according to the charging status of the battery. Mppt is a new technology. With 100% ultra-high working efficiency and a ten-year service life, WHC mppt 60A charge controller is a high-frequency DC to DC converter that can optimize the matching between solar panels and battery packs.
Easily know the performance of 48v mppt solar charge controller.

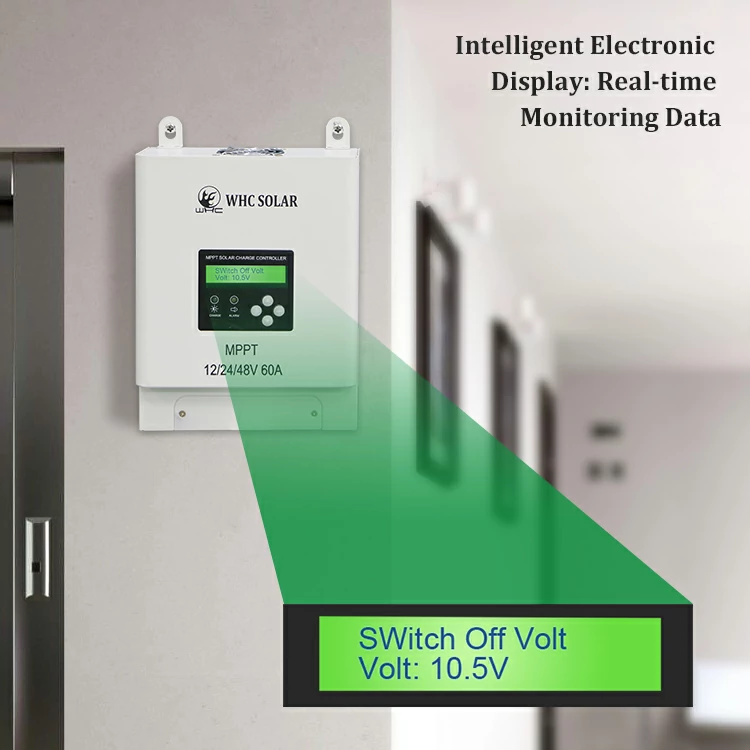

The charge control can be improved by using mppt to increase the voltage output of the solar panel at high temperatures in summer, even if the mppt solar charge controller is very effective at colder temperatures in winter. Our MPPT solar charge controller also has LCD display, photovoltaic array short circuit, photovoltaic reverse polarity, battery reverse polarity, overcharge, output short circuit and other performances. So WHC Solar 48V 60A mppt solar charge controller is your family's new technology partner.
It is worth having an Authentic mppt charge controller

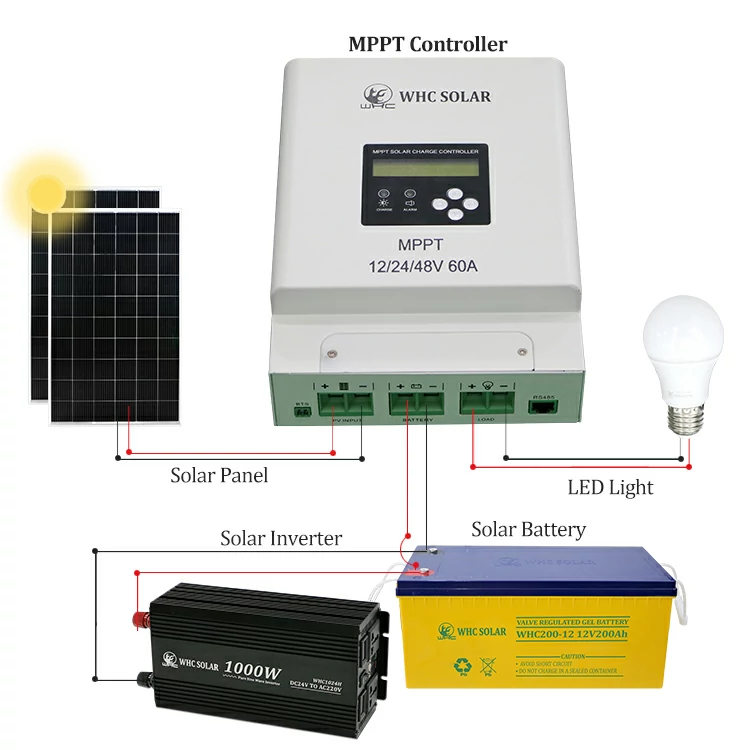

Suitable for Panel charge, solar workstations, and solar system. Bring more efficient productivity and better security to your solar system.
