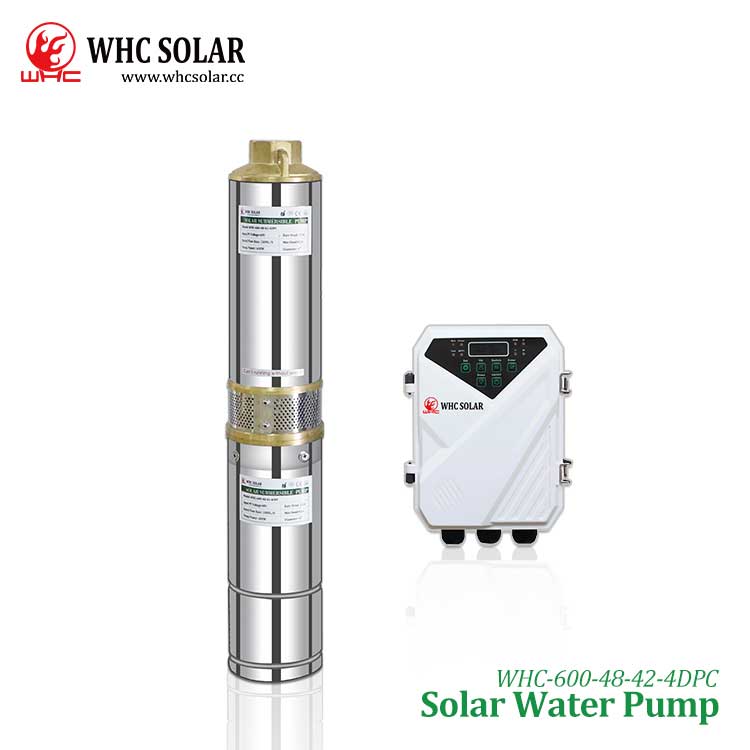

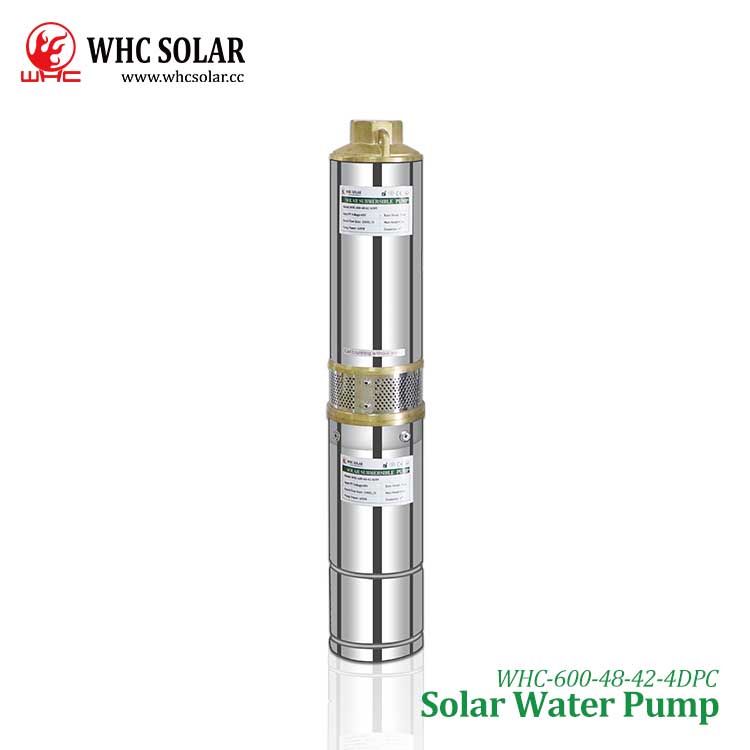

Best WHC 600-48-42-4DPC Solar Submersible Pump
The entire solar submersible pump adopts a reasonable solar pumping system design, which maximizes the efficiency, simplicity and reliability of performance. The solar water pump system works in DC output mode, with a maximum head of 42m and a maximum flow of 6000L/H.
Complete set of high-efficiency solar water pump kit configuration
Each solar water pump system or solar power generation system requires different configuration equipment, and the power and price of each product type are also different. So what is the configuration of the solar water pump kit of WHC 600-48-42-4DPC? as follows:
◆High efficiency monocrystalline silicon solar panel 120W*8PCS
Each solar panel is designed to track the solar panel as much as possible and quickly convert it into renewable energy, so that the solar water pump can quickly deliver water to different scenarios. Compared with traditional water pumps, solar panels have a more environmentally friendly power output and protect the health of water sources.
◆MPPT charge controller 1*PCS
Maximum power point tracking (MPPT) has a solar panel protection function to prevent overcharge and overload when the pump is working. Make the entire solar water pump safer to use.
◆42m 600w brushless DC performance of solar water pump system
In deep well operations, brushless DC is also pressureless. The 600w generator greatly improves the working efficiency of the solar water pump system and correspondingly reduces the consumption of solar panels. Permanent magnet DC brushless synchronous motor can better protect your machine. Moreover, the noise is low, 304 stainless steel is used, and the anti-corrosion and rust-proof effect is excellent, and the service life is longer.
◆DC solar water pumps for deep wells, agricultural irrigation and animal husbandry
solar pump can be operated in any place exposed to sunlight. The longer the irradiation time, the more water the DC solar water pump can deliver. Then it is not so efficient on cloudy days, but it will reduce water consumption accordingly on cloudy days. So there is not much conflict with this. You can decide according to your own usage.
Basic parameters of solar pump:
Max head rate: 42m
Speed head: 35m
Max flow rate: 6000L/H
Rated flow: 2000L/H
Solar panel: high-efficiency monocrystalline 120W*8PCS
Motor power: 600W
Mppt controller: 48V15A
Solar input voltage: 71V
Working time:During the sunshine
Diameter (Φ): 3"
Motor speed: 4000r/min
Pump material: 304 stainless steel
Applications of solar pumps: diving, irrigation, homes, wells, farms, villages, etc.
