WHC 550-48-50-3QB supercharged solar surface pump product specifications
●Model: WHC 550-48-50-3QB
●Max head rate: 50m
●Speed head: 35m
●Max flow rate: 3000L/H
●Rated flow: 1000L/H
●Solar panel: high-efficiency monocrystalline silicon 120W*8PCS
●Motor power: 550W
●Mppt controller: 48V 15A
●Export inch: 1'
●Motor speed: 2850r/min
●Solar surface pump material: steel
●Working time:During the sunshine
What is a surface solar booster pump?
The solar booster pump is and realizes off-grid work. Generally speaking, solar booster pumps use solar energy to effectively pump water from shallow water areas such as ponds, rivers and lakes, and can quickly solve the water supply problem where water is needed.

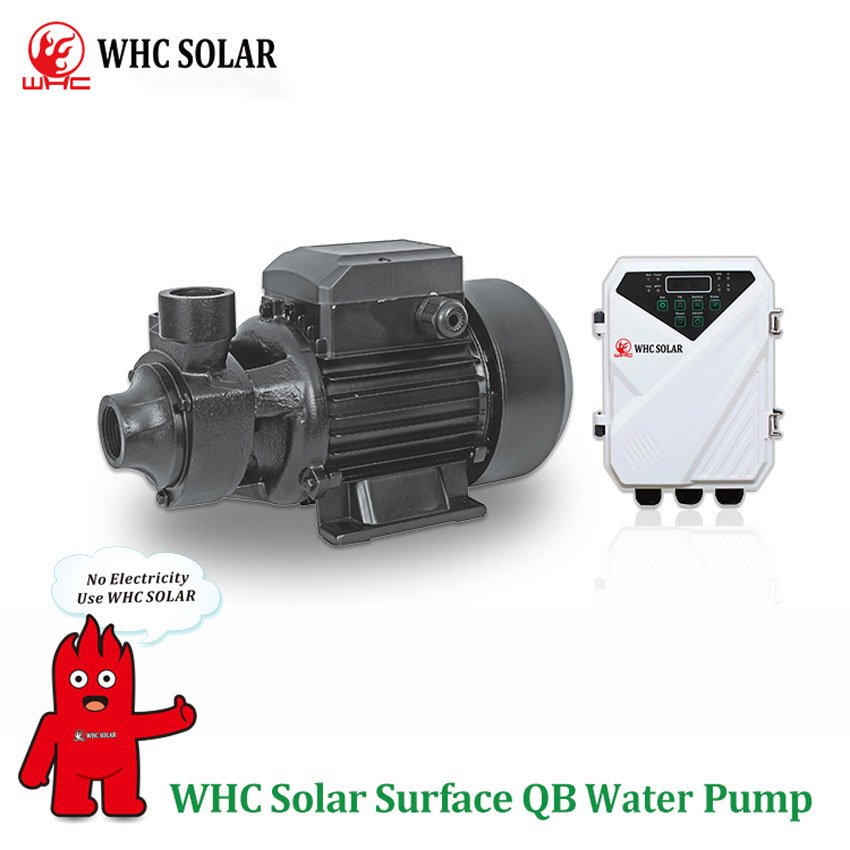

WHC 550-48-50-3QB DC booster solar water pump system
DC booster solar water pump is most suitable for families, planters, and breeders. It is also one of the best choices for areas with insufficient power supply and power shortage. The solar water pump system uses the unlimited energy of solar energy, allowing each user to realize the freedom of water without worrying about being unable to use water due to lack of electricity.
WHC 550-48-50-3QB booster solar pump accessories and facilities
1. Monocrystalline solar panels, 8PCS*120W, 25-year service life, can output the maximum power, so that the surface water pump runs more efficiently on the ground.
2. 48V 15A mppt solar controller, the controller has a temperature compensation function and automatic protection functions such as overcharge, overdischarge, overload, short circuit, reverse connection and over temperature. Make the solar pump safer and increase the service life of the water pump.
Application of solar surface water pump kit
It is widely used in areas with large water consumption such as farmland irrigation, vegetable greenhouse water supply, aquaculture, and livestock and poultry water consumption. Then there are remote houses without electricity and small irrigation points. Use solar surface pumps to store water in the tank during the day, so you don't have to worry about running out of water when you need it. When there is no reliable main power source, the solar surface water pump is the ideal choice.
Features of WHC 550-48-50-3QB booster solar water pump
▶ DC motor work, more convenient
▶ Stainless steel pump housing material, strong anti-rust ability
▶ Easy to install, operate and maintain
▶ High power and high lift
▶ It is safe and reliable to use and has a long service life etc.
