252m 3000L/H 3HP power frequency solar submersible pump specifications
Model: WHC 2/32-2.2/3HP Solar Submersible Pump
Max head rate: 252m
Max flow rate: 3000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper motor power: 2200W
Mppt router: 3000W
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working hours: During the sunshine
Pump material: 304 stainless steel
159m 3000L/H 2HP power frequency solar submersible pump specifications
Model: WHC 2/26-1.5/2HP Solar Submersible Pump
Max head rate: 159m
Max flow rate: 3000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper motor power: 1500W
Mppt router: 2200W
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working hours: During the sunshine
Pump material: 304 stainless steel
77m 3000L/H 0.75HP power frequency solar submersible pump specifications
Model: WHC 2/11-0.55/0.75HP Solar Submersible Pump
Max head rate: 77m
Max flow rate: 3000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper motor power: 550W
Mppt router: 750W
Solar input voltage: 160V
Open circuit voltage (Voc): 230v
Working hours: During the sunshine
Pump material: 304 stainless steel
154m 3000L/H 1.5HP power frequency solar submersible pump specifications
Model: WHC 1.5/22-1.1/1.5HP Solar Submersible Pump
Max head rate: 154m
Max flow rate: 3000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper motor power: 1100W
Mppt router: 1500W
Solar input voltage: 330V
Open circuit voltage (Voc): 500v
Working hours: During the sunshine
Pump material: 304 stainless steel
126m 3000L/H 1HP power frequency solar submersible pump specifications
Model: WHC 1.5/18-0.75/1HP Solar Submersible Pump
Max head rate: 126m
Max flow rate: 3000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper motor power: 750W
Mppt router: 1100W
Solar input voltage: 160V
Open circuit voltage (Voc): 230v
Working hours: During the sunshine
Pump material: 304 stainless steel
98m 3000L/H 0.75HP power frequency solar submersible pump specifications
Model: WHC 1.5/14-0.55/0.75HP Solar Submersible Pump
Max head rate: 98m
Max flow rate: 3000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper motor power: 550W
Mppt router: 750W
Solar input voltage: 160V
Open circuit voltage (Voc): 230v
Working hours: During the sunshine
Pump material: 304 stainless steel
70m 3000L/H 0.5HP power frequency solar submersible pump specifications
Model: WHC 1.5/10-0.37/0.5HP Solar Submersible Pump
Max head rate: 70m
Max flow rate: 3000L/H
Solar panels: high-efficiency mono silicon solar panels
Pure copper motor power: 370W
Mppt router: 550W
Solar input voltage: 110V
Open circuit voltage (Voc): 140v
Working hours: During the sunshine
Pump material: 304 stainless steel
WHC 3000L 0.5 to 3HP 70 to 252m AC submersible solar pumping system
Solar water pump is a kind of solar water pump system equipment, which is composed of photovoltaic water pump demand configurator and water pump. And our maximum flow is as high as 3000L, which is equivalent to 3 tons, which can meet the usual water problems. It can work without power grids, batteries and diesel. It can help provide the best water supply solutions in areas where there is no electricity and power shortages, and help these users solve their water needs.
Efficient configuration of our WHC solar water pump

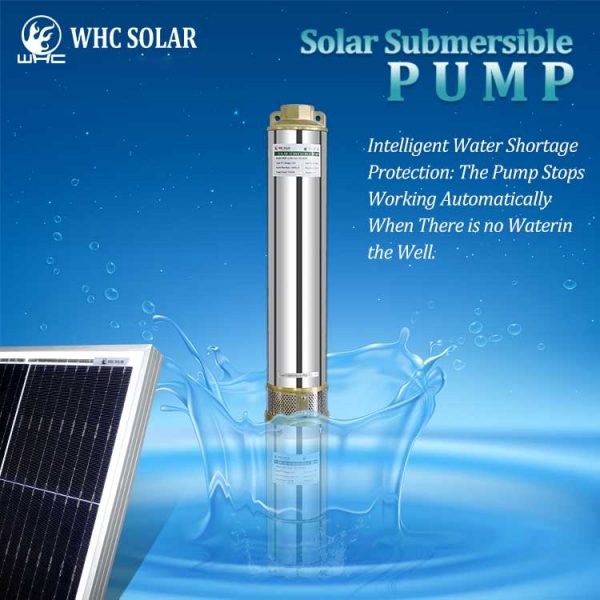

One: Water pump motor: The whole water pump motor is made of 304 stainless steel, which has the characteristics of anti-rust, corrosion resistance, long life and high compressive strength, so as to reduce its own net weight, lighter weight, easy to use, and suitable for a wider range of industries. The outer shell of the stainless steel water pump wraps the main shaft and impeller of the water pump, and is an important part of the pump motor.
Tow: Monocrystalline solar panel: It is composed of solar energy collection and photoelectric conversion device, which absorbs solar energy and converts it into energy (electricity); the solar water pump adjusts the output power to drive the water pump in real time according to the change of sunlight intensity to ensure that each solar panel can have Sufficient power output. Its service life is more than 20 years, and the warranty is 10 years.
Three: Solar water pump inverter/controller: convert the energy generated by solar panels into electrical energy; track the output of the photovoltaic array through the maximum power point to drive the pump motor to the greatest extent. In addition to the DC input of the photovoltaic array, the special inverter for solar water pumps also supports AC input. When the output of the photovoltaic array cannot drive the motor or has no output, it also accepts the AC input of the grid to meet various emergency needs. The special inverter for solar water pump provides all-round protection functions such as over-current, under-voltage, and leakage prevention to maximize the service life of the motor and solar water pump.
Application of solar powered water well pump system
The entire solar water pump system can be used for different pumping tasks, such as: deep wells, lakes, ponds, and even agricultural irrigation, livestock drinking, household use, villages, etc.
The main features and advantages of solar well pump
1. The solar solar well pump is easy to install and maintenance-free
2. The motor and water pump are integrated, energy-saving, high-efficiency, safe and reliable
3. Light weight, no noise and no pollution, it has a strong effect on improving the installation environment
4. Equipped with stainless steel submersible motors produced by advanced technology, rust-proof and corrosion-resistant
5. MPPT inverter is well-designed and safer to use
6. Wide input voltage range, suitable for a variety of photovoltaic modules
7. Both solar and city electricity can work
8. Factory direct sales, more favorable prices, etc.
