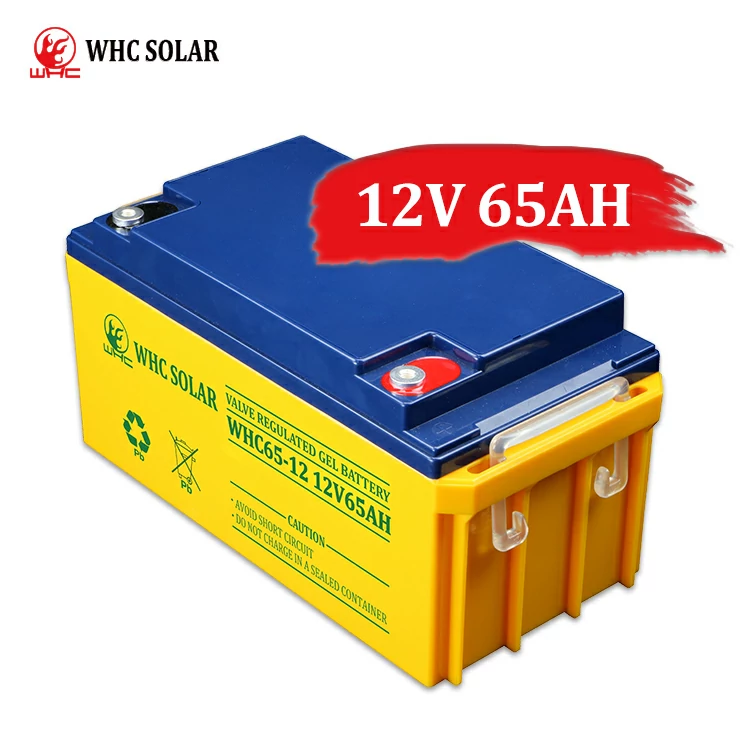

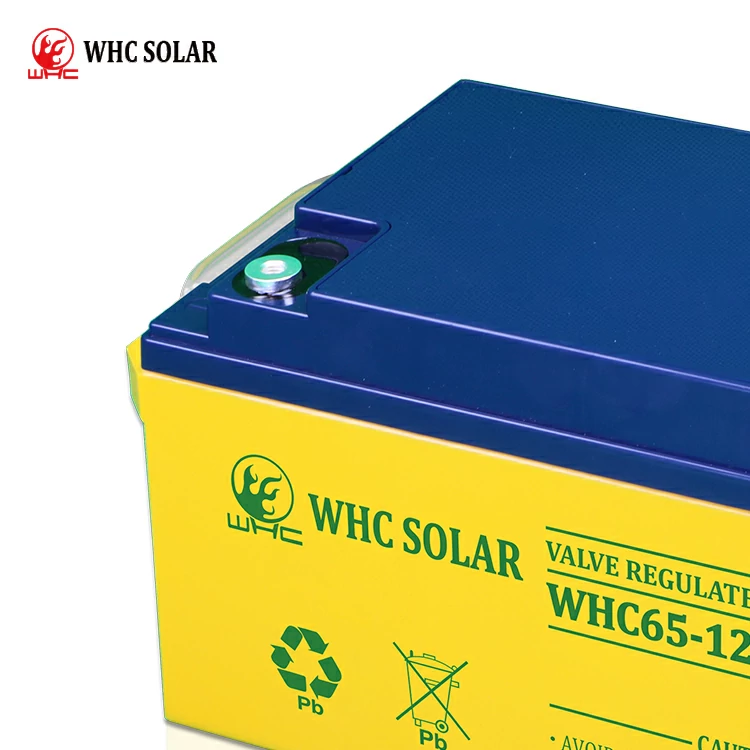

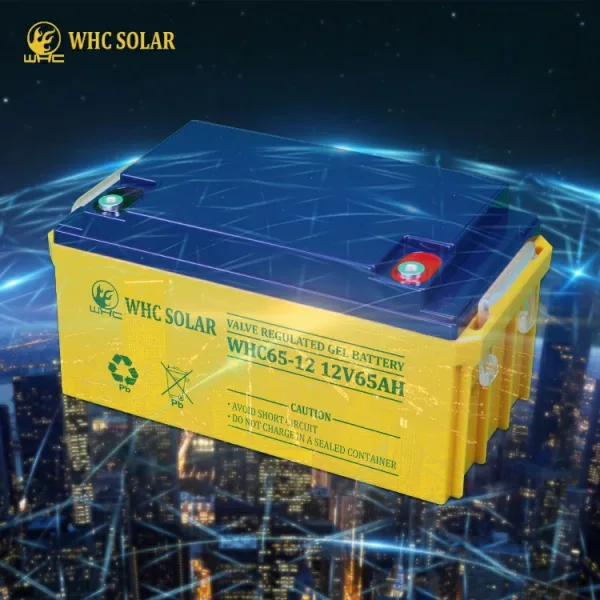

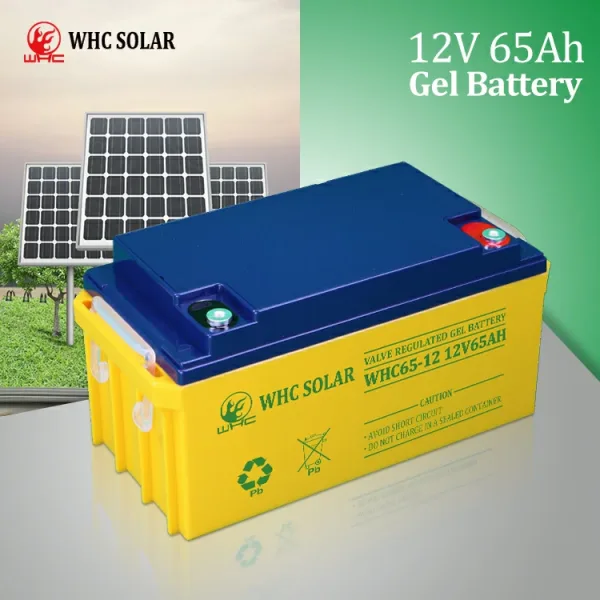

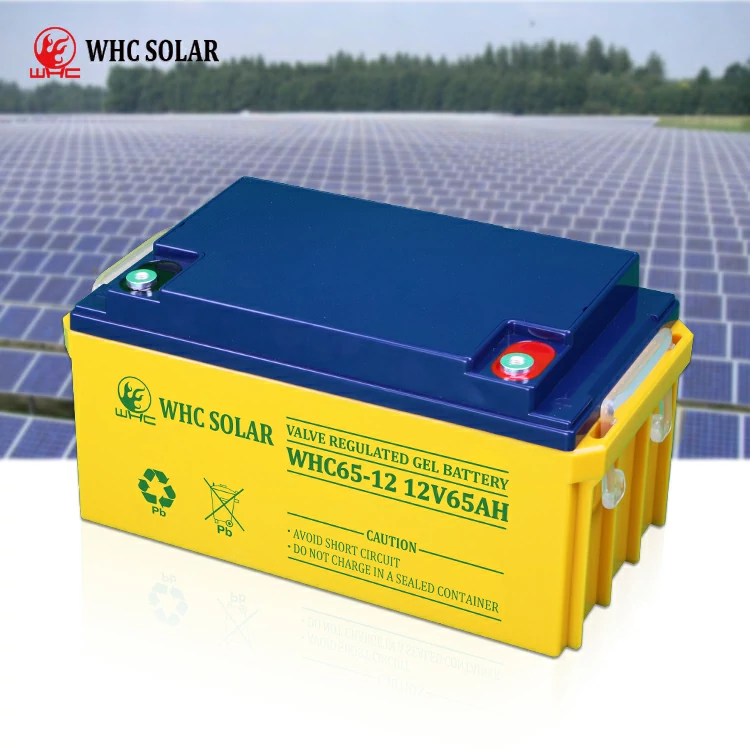

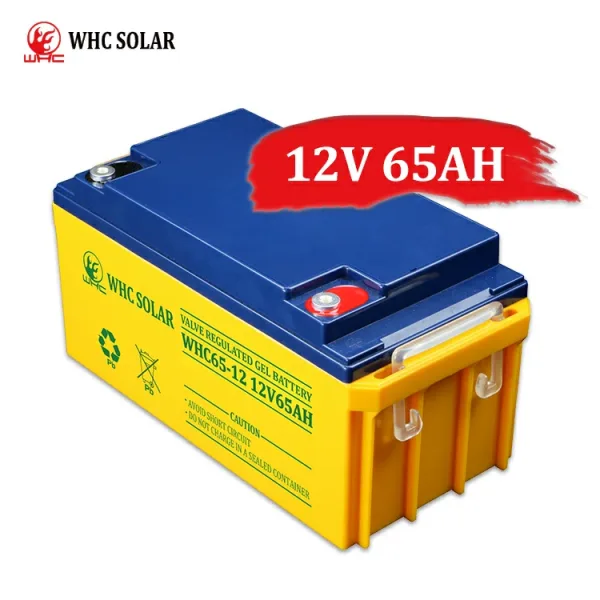

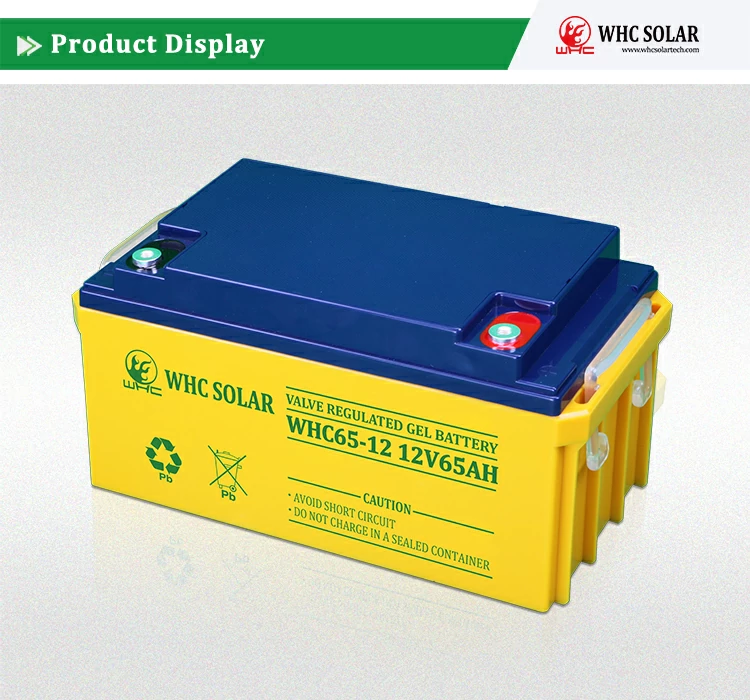

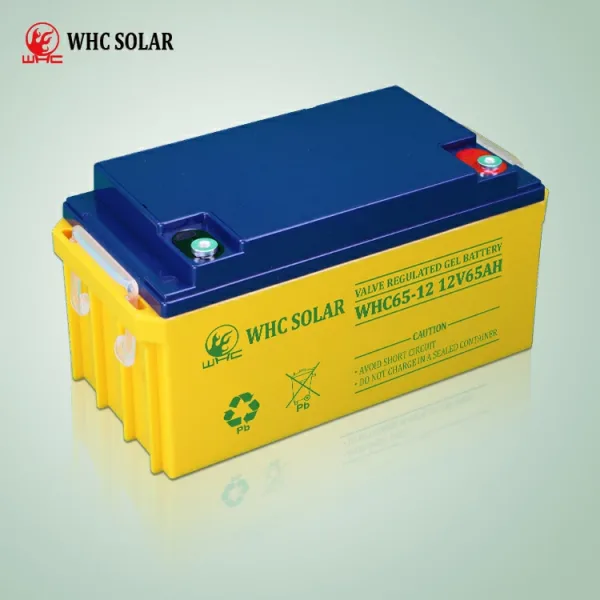

Product Name:Solar Gel Battery
Model:WHC 12V1 65AH
Appearance Size: 350*167*179mm
Weight: 14.2KG
Specifications:
Nominal Voltage 12V
Capacity(25%C)
10HR(10.8V) 65 Ah
5HR(10.5V) 50.5Ah
1HR(9.60V) 37.8Ah

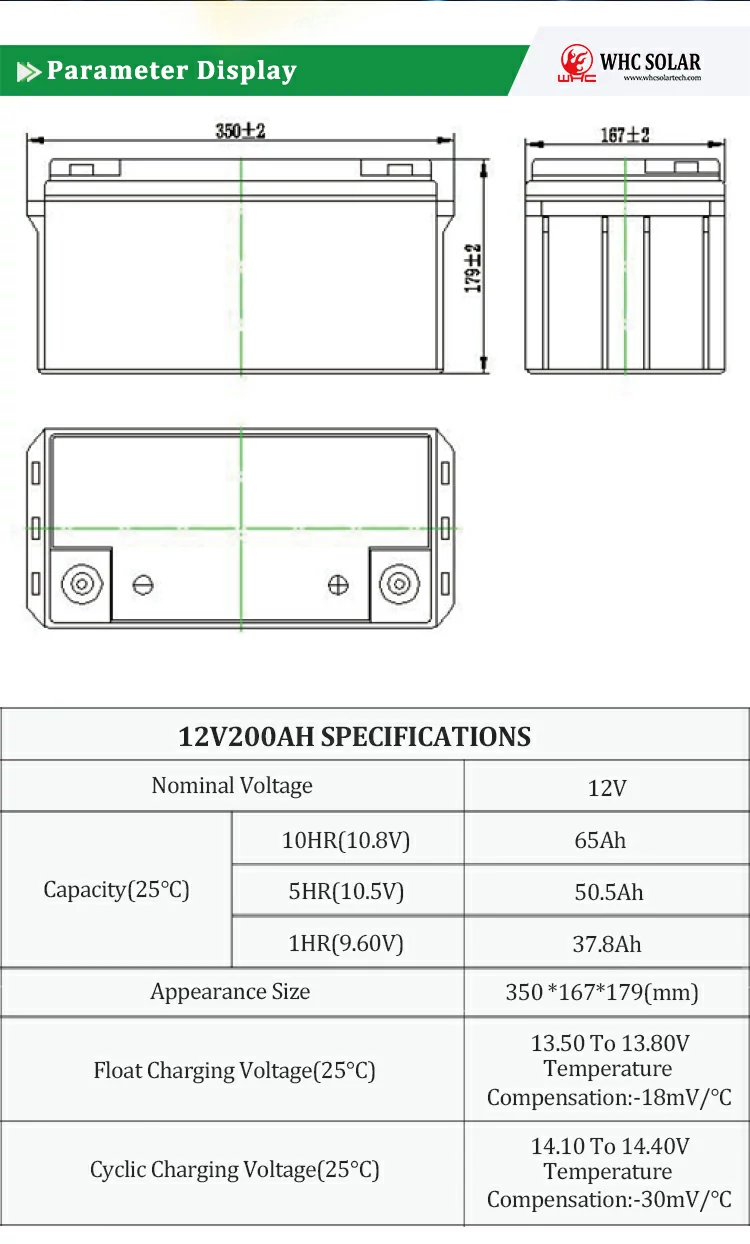

Dimension:
Length 350±2mm(13.78inch)
Width 167±2mm (6.57inch)
Height 179±2mm (7.05inch)
Total Height 179±2mm (7.05inch)
Ter minal type T9
Internal resistance (Fully charged, 25°C )
Approx.6.5mΩ
Capacity affected by temperature(10HR):
40 °C:103%
25 °C:100%
0°C:88%
-15°C:70%
Self -discharge(25 °C):
3 month:Remaining Capacity: 94%
6 month:Remaining C apacity: 88%
12 month:Remaining Capacity: 75%
Nominal operating temperature:
25°C+3°C (77°F±5°F)
Operating temperature range:
Discharge:-15°C ~ 50°C(5°F~ 131°F)
Charge:
-10°C~ 50°C(14°F ~131°F)
Storage:
-20°C ~ 50°C (-4°F~131°F)
Float charging voltage(25°C):
13.50 to 13.80V Temperature compensation:-18 mV/°C
Cyclic charging voltage(25°C):
14.50 to 14.90V Temperature compensation:-30mV/°C
Maximum charging current:13.0A

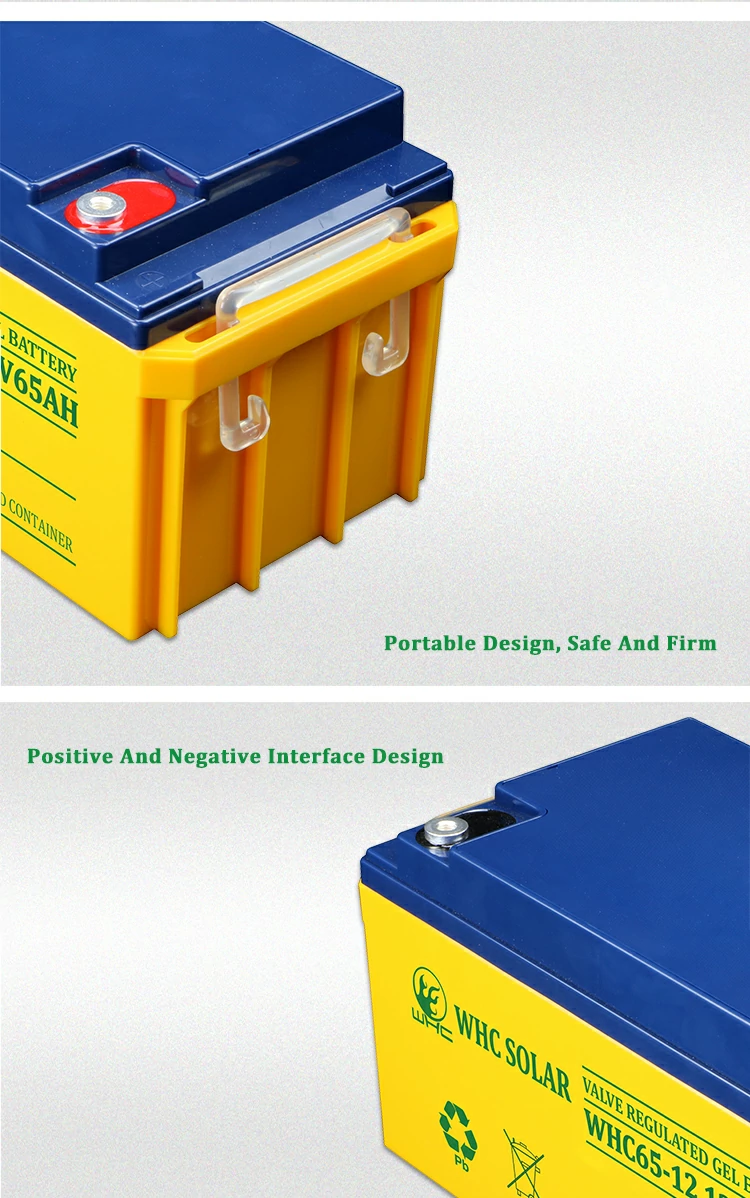

Terminal material:Copper
Maximum discharge current:650A(5 sec.)
Performance advantages of solar rechargeable batteries
This 12V 65Ah solar gel battery is an AGM (absorbent glass mat), maintenance-free, valve-controlled solar rechargeable battery. The glass mat is used to absorb the battery electrolyte between the battery plates. If the battery is damaged, there will be no free liquid leakage. And this series is almost maintenance-free, with a perfect sealing structure and gas reorganization inside the battery.
Have a good quality solar deep cycle battery

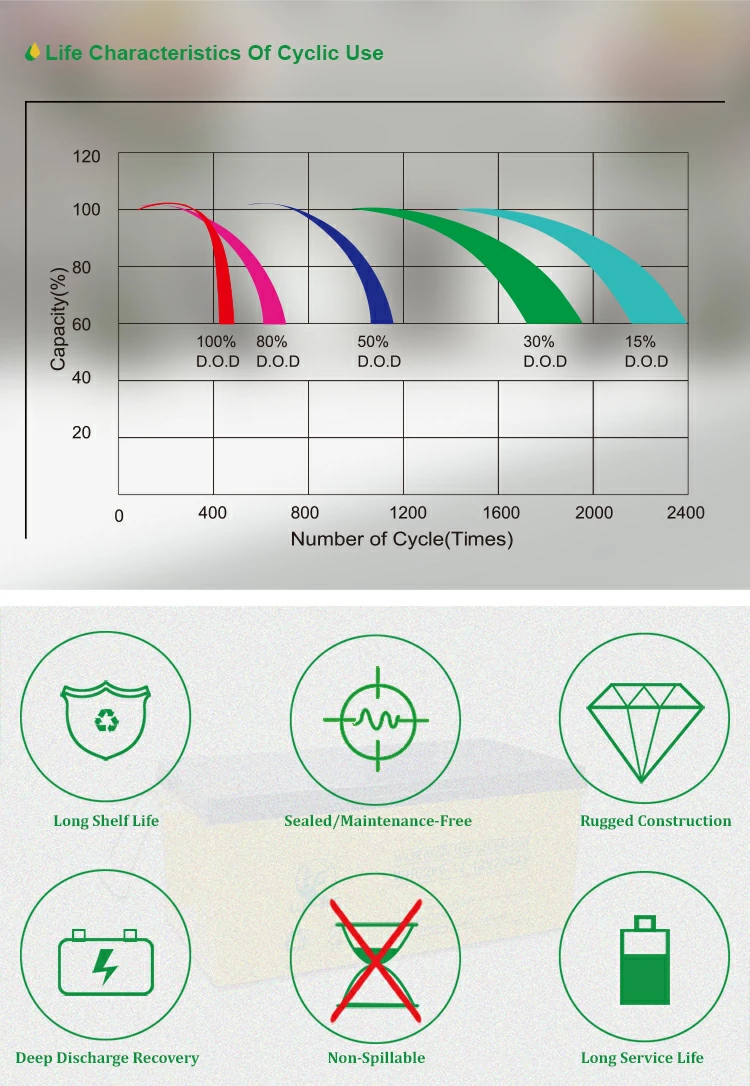

solar deep cycle battery 12V 65Ah also has the characteristics of wide battery operating temperature, long service life and deep discharge recovery. It can also be used in a variety of applications; it can be used when fully charged. It can accept OEM/ODM sealed lead-acid battery specifications. whc Provide new original designs, high-quality solar power battery storage and resources for various solar systems.
produce high-quality products at suitable solar battery cost
WHC 12V 65AH gel solar battery are led by our industry and set the standard of quality and excellence. We believe that you will be impressed by the quality of our batteries. If you are not satisfied during use, you will enjoy a one-year replacement warranty. For your convenience, whc provide an extended warranty period of up to 3 years, with a service life of up to 5-8 years. Provide the most suitable solar battery cost price and obtain preferential purchasing conditions.
Not only solar batteries for home

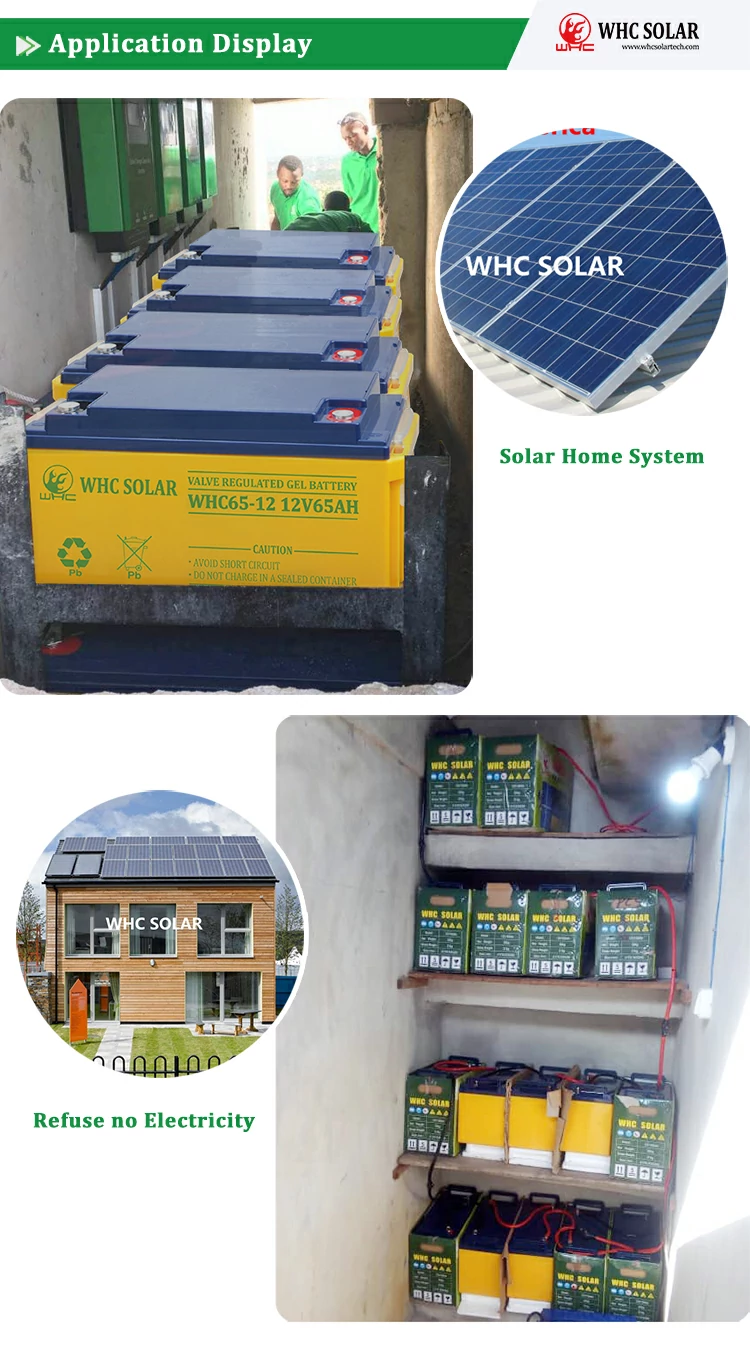

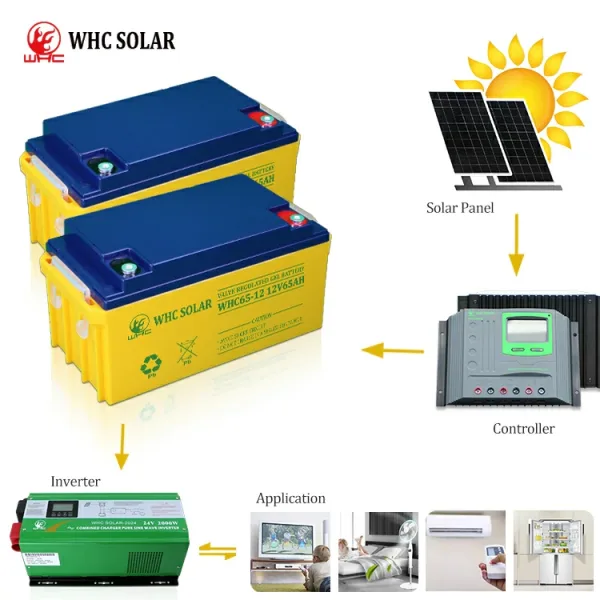

In addition is solar batteries for home, it can also be used for UPS backup power supplies, power supply systems, emergency backup power supplies, emergency lighting, control equipment, communication power supplies, and industrial solar battery energy storage systems.
Provide you high-quality solar batteries for sale services
Our employees are experienced and knowledgeable. Can provide you with any model of solar battery for sale. We will ship all the stock items you ordered within 24 hours. whc Provide you with high-quality services to make your purchase more convenient !
