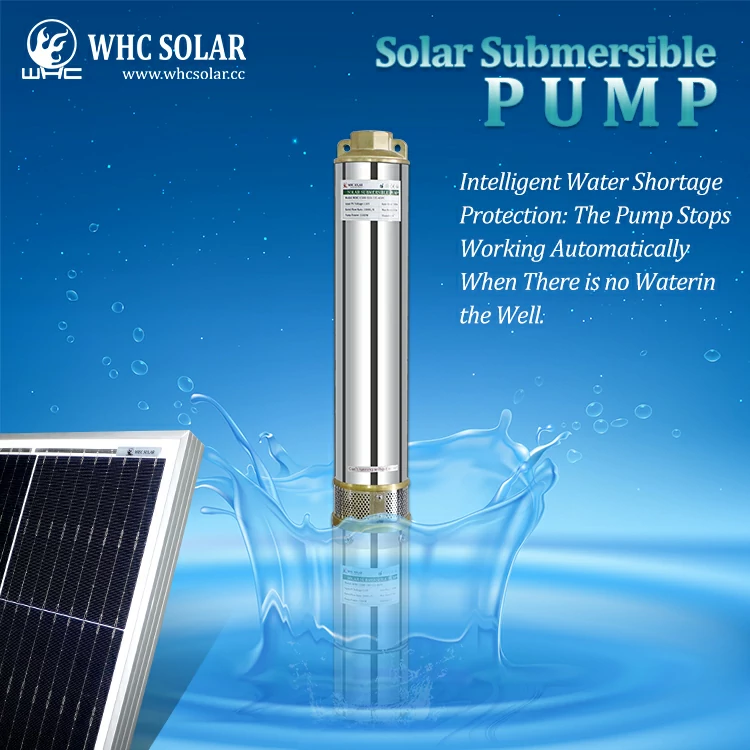

WHC Solar Submersible Pump Kit DC Brushless 123m 3800L

WHC 1100-110-123-3DPC Solar Submersible Pump 1100w, Head 123m, Flow Rate 3800L, Mppt DC Brushless. Using: Farm, Deep Well, Government Project, Etc.

DC submersible solar pump parameters

Model: WHC-1 100-110-123-3DPC solar water pump
Max head rate: 123m
Speed head: 80m
Max flow rate: 3800L/H
Rated flow: 2000L/H
Specification: solar panel 330W* 4PCS
Motor power: 1100W
Mppt controller: 110V 15A
Solar input voltage: 132V
Working time: During the sunshine
Diameter (Φ): 3"
Motor speed: 4000r/min
Pump material: 304 stainless steel
Application: deep well, diving, irrigation, home furnishing, etc.

Solar submersible pumps for different purposes.

Do you need water for drinking or cooking, irrigation water for crops, etc. in your daily life? Therefore, for solar well pumps, these can be satisfied and achieved. After use, you will find that these solar water pumps can provide great help for your life. Moreover, the installation of the solar water pump is very simple, and the whole use process is simple and convenient. In the current market, because there are more solar water pumps, the price will be much more favorable. However, the choice of pumps in solar panels is also important.

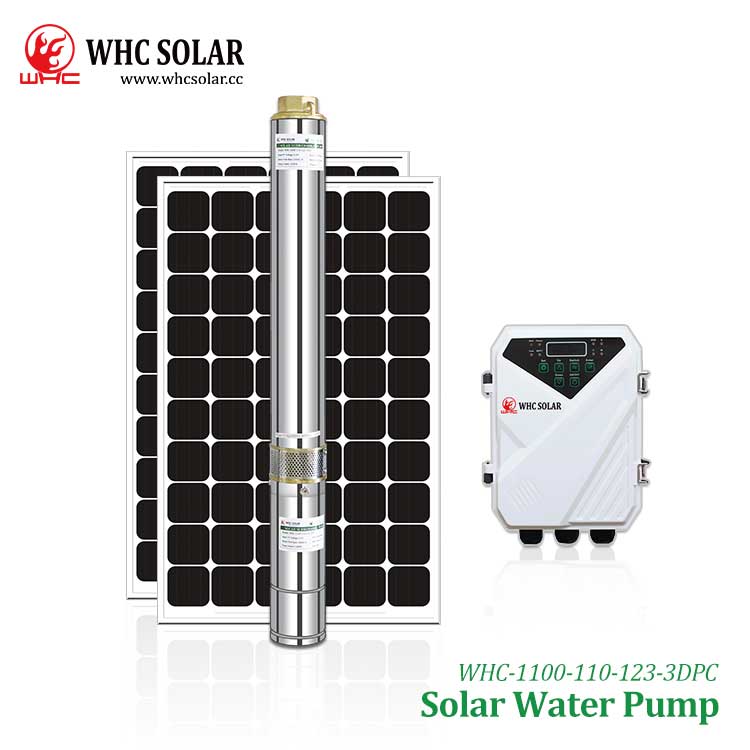

Our WHC 1100-110-123-3DPC Solar Submersible Pump Kit

The difference between this kind of solar submersible pump and the traditional water pump is that the solar submersible pump can be DC off-grid operation. In other words, they use the energy generated by solar panels to independently supply water. And with the increase of each level of head, the maximum head can reach 132m, and the maximum flow rate per hour is 3800L. You can use these solar submersible pumps for deep wells, farm irrigation, lakes, etc.

Advantages of solar panel water pump

1. Off-grid work: WHC-1100-110-123-3DPC solar panel pump can complete the work independently, no matter how far away from the mains or power failure, the solar panel can work off-grid.

2. Green and clean energy: One of the most important benefits of using solar products is that it will not produce annoying carbon emissions and noise, and provide users with a low-noise working mode. This means that they can better protect the environment and the earth.

3. Powerful pumping capacity: The solar panel water pump has a very powerful water supply capacity, and the dual-bearing motor base can withstand greater axial pressure. This means that the pump can reach the maximum head and flow.

4. Brushless DC: Brushless DC synchronous motors can better protect your pump. Because there is no carbon brush friction, the water pump has higher working efficiency, lower power consumption, longer service life and lower noise than the brush motor. It also has a leak-proof sealing function.

5. MPPT controller: It can play high-voltage/low-voltage/current/high-temperature protection functions, and can automatically start and stop work, better protect the solar panels, and provide solar DC water source output. Of course, the user can also manually change the rotation speed of the solar water pump.

Multifunctional best solar DC water pump

In addition to the above, solar DC pumps can also ensure long-term reliable operation under any conditions. 304 stainless steel pump shaft and Japanese NSK bearings have extremely high anti-rust and anti-leakage double sealing effects, and are not prone to corrosion problems. There is also intelligent water shortage protection, the pump will automatically stop working when there is no water in the well.
