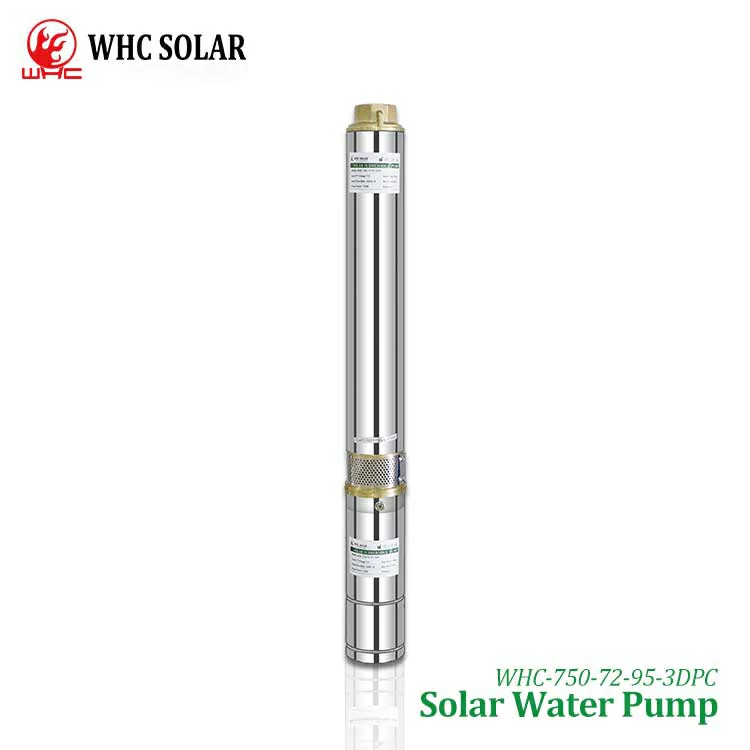

WHC DC Solar Water Pump Deep Well 750w Head 95m Flow 3500L

WHC 750-72-95-3dpc 750w DC Brushless Solar Water Pump, Head 95m, Flow 3500L. Application: Home, Deep Well, Farmland Irrigation, Breeding Farm, Etc.

DC solar submersible pump parameters:

Model: WHC 750-72-95-3DPC Solar Submersible Pump
Max head rate: 95m
Speed ​​head rate: 50m
Max flow rate: 3500L/H
Rated flow: 2000L/H
Solar panel: high-efficiency monocrystalline 180W*6PCS
Motor power: 750W
Mppt controller: 72V 15A
Solar input voltage: 108V
Motor speed: 4000r/min
Diameter (Φ): 3"
Working time:During the sunshine

Should I buy a DC solar water pump kit?

Perhaps many people who buy solar water pumps will consider whether the solar water pump is fully equipped, whether it is convenient to install, and whether the power is suitable for their various applications. In fact, you don't need to worry, most solar pump kits are now configured. You only need a simple installation and operation process to make the solar water pump work.

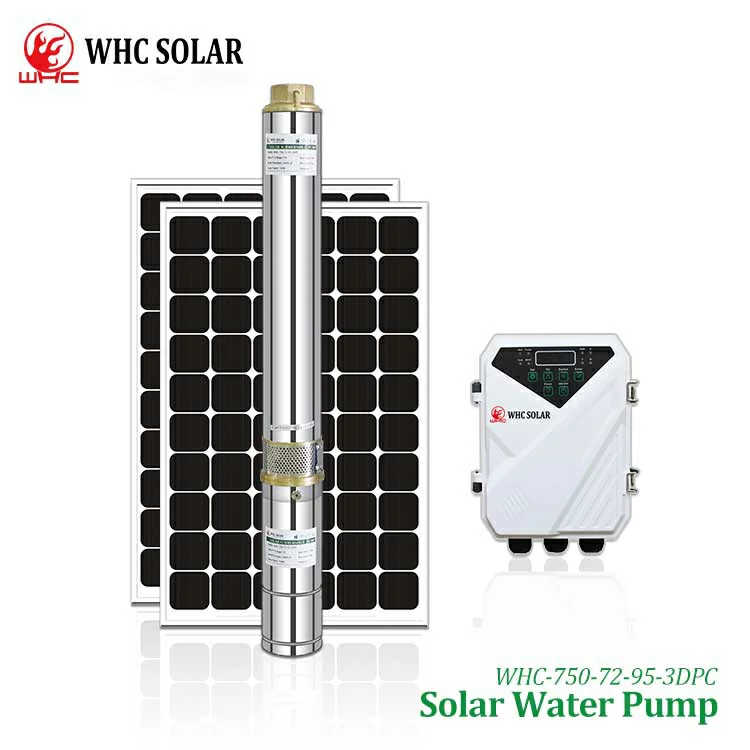

WHC 750-72-95-3DPC Solar Submersible Pump Kit

If you want solar water pumps to be used for households, farm irrigation, ponds, livestock drinking water, deep wells, etc., installing an off-grid system DC water pump is your best choice. You don't need to worry about power failure or insufficient power supply to achieve work, as long as there is sunlight, the solar submersible pump can work. Then, WHC 750-72-95-3DPC solar submersible pump is a good choice.

Advantages of our DC solar water pump

According to the application, the WHC 750-72-95-3DPC solar submersible pump intelligently starts the water shortage protection, and the DC solar water pump automatically stops working when there is water shortage. The pump has a maximum head of 95m and a maximum flow of 3500L/H to ensure safe and convenient work. And each configuration has the highest quality and high work efficiency. The configuration is as follows:

6*PCS 180W monocrystalline silicon solar panel

Each solar panel has enough power. Track solar energy to the greatest extent to achieve off-grid work, and directly use solar energy to quickly provide pumping work for water pumps. The solar panel has a service life of up to 25 years, and we also provide a 10-year warranty.

1*PCS mppt solar controller

It has low voltage, current, and high temperature protection functions, the maximum power point tracking efficiency is >99%, and the discharge indication, fault indication, operating parameters, and status can all be clear on the LCD screen. Have a better and clearer understanding of pump operation.

Solar deep well pump material:

Made of 304 stainless steel, it has good corrosion resistance, heat resistance and rust resistance, and can work in deep wells for a long time. If you want to make the solar deep well pump more durable, put it in a cool and dry place when you don't need to pump water. In this way, the water pump will have a better service life and work efficiency.

DC brushless function:

Compared with brush motors, brushless motors have higher working efficiency, lower power consumption, longer service life and lower noise. It also has the characteristics of no carbon brush, no pollution, good pressurization effect, and leak-proof sealing.

We have the best solar pumps for sale

WHC Solar is a well-known brand in China's solar energy industry. All our solar products are directly supplied by the factory. If you want to buy the best solar pumps and other best solar series products in bulk, you can contact us at any time, and you will get high-quality products and price advantages here. Very welcome to cooperate with us. We WHC Solar will be your best partner.
