Basic parameters of DC solar water pump
Model: WHC 1500-110-71-4DPC
Max head rate: 71m
Speed head: 50m
Max flow rate: 9000L/H
Rated flow: 4500L/H
Solar panel: high-efficiency monocrystalline 400W*6PCS
Motor power: 1500W
Mppt controller: 110V 15A
Solar input voltage: 110V
Working time:During the sunshine
Diameter (Φ): 4"
Motor speed: 4000r/min
Pump material: 304 stainless steel
Applications of DC solar water pumps: irrigation, homes, pastures, wells, farms, villages, etc.
What is an off grid solar water pump?
The main difference between off-grid solar water pumps and traditional water pumps is the power supply. The device can have built-in solar panels, and then the solar panels provide electricity for solar pumping equipment.

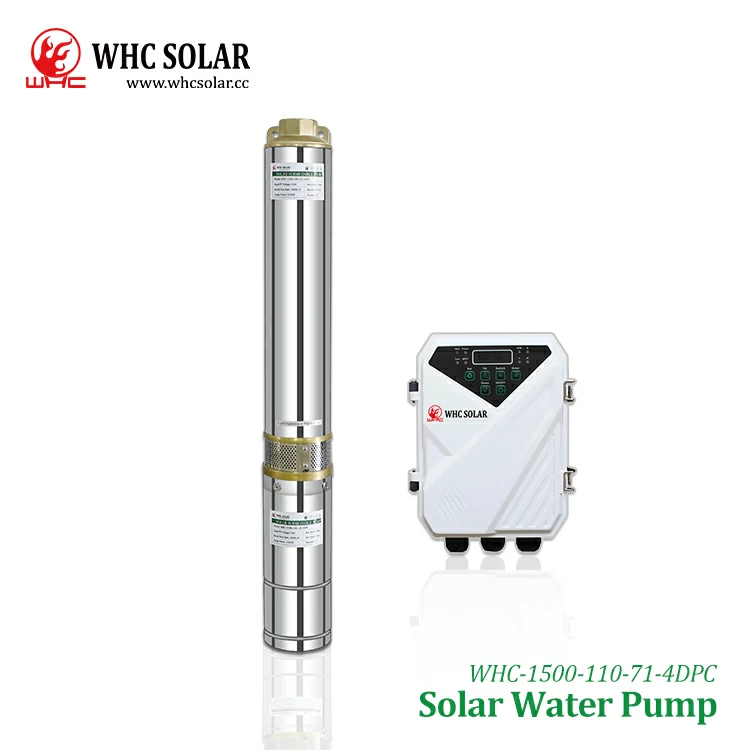

WHC 1500-110-71-4DPC solar water pump system
solar submersible pump system has good compatibility, high degree of standardization and strong versatility. No solid, liquid and gaseous harmful substances are produced during use, and water resources and the environment are absolutely protected. It is also equipped with good solar water pump accessories.
1. Monocrystalline solar panel 400W*6PCS
Track solar energy to the maximum to ensure that each solar panel can output enough power to provide clean energy and realize off-grid load work. Long service life, guaranteed 25-year service life and 10-year shelf life.
2. 304 stainless steel material manufacturing
304 stainless steel is widely used in the manufacture of materials that require good comprehensive properties. It can run underwater for a long time and has strong anti-corrosion and anti-rust effects.
3.MPPT charge controller
When the entire DC solar water pump is running, the MPPT controller activates voltage and current overload protection, which makes the load process of the entire water pump system safer and more efficient.
Permanent magnet DC brushless performance of off grid solar submersible pump
Solar submersible pump has low noise, small size and stable performance. Various required parameters can be adjusted through the stator winding, can work under a wider voltage, and better perform oil pumping operations in deep well areas. In addition, it is a maintenance-free motor. When necessary, only need to do some maintenance to remove the dirt.
Why the WHC 1500-110-71-4DPC submersible solar water pump is worth buying!
Submersible solar water pump system has good long-term economy, especially compared with the common traditional diesel pumping and grid pumping, the solar water pump has greater advantages. This new type of environmentally friendly and energy-saving products will undoubtedly bring huge and good economic and social benefits to the development of industrial economy, especially in arid areas and areas with insufficient power supply, and is particularly suitable for resource-based, energy-saving, and environmentally friendly social development.
