290m 10000L/H 7.5HP solar submersible pump specifications
Model: WHC 6/46-5.5/7.5H solar submersible pump
Max head rate: 290m
Max flow rate: 10000L/H
Solar panels: High efficiency mono silicon solar panels
Pure copper Motor power: 5500W
Mppt inverter: 7500w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
227m 10000L/H 5.5HP solar submersible pump specifications
Model: WHC 6/38-4/5.5HP solar submersible pump
Max head rate: 227m
Max flow rate: 10000L/H
Solar panels: High efficiency mono silicon solar panels
Pure copper Motor power: 4000W
Mppt inverter: 5500w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
164m 10000L/H 4HP solar submersible pump specifications
Model: WHC 6/30-3/4HP solar submersible pump
Max head rate: 164m
Max flow rate: 10000L/H
Solar panels: High efficiency mono silicon solar panels
Pure copper Motor power: 3000W
Mppt inverter: 4000w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
126m 10000L/H 3HP solar submersible pump specifications
Model: WHC 6/22-2.2/3HP solar submersible pump
Max head rate: 126m
Max flow rate: 10000L/H
Solar panels: High efficiency mono silicon solar panels
Pure copper Motor power: 2200W
Mppt inverter: 3000w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
88m 10000L/H 2HP solar submersible pump specifications
88m 10000L/H 2HP solar submersible pump specifications
Model: WHC 6/15-1.5/2HP solar submersible pump
Max head rate: 88m
Max flow rate: 10000L/H
Solar panels: High efficiency mono silicon solar panels
Pure copper Motor power: 1500W
Mppt inverter: 2200w
Solar input voltage: 560V
Open circuit voltage (Voc): 750v
Working time:During the sunshine
Pump material: 304 stainless steel
79m 10000L/H 1.5HP solar submersible pump specifications
Model: WHC 6/12-1.1/1.5HP solar submersible pump
Max head rate: 79m
Max flow rate: 10000L/H
Solar panels: High efficiency mono silicon solar panels
Pure copper Motor power: 1100W
Mppt inverter: 1500w
Solar input voltage: 330V
Open circuit voltage (Voc): 500v
Working time:During the sunshine
Pump material: 304 stainless steel
59m 10000L/H 1HP solar submersible pump specifications
Model: WHC 6/9-0.75/1HP solar submersible pump
Max head rate: 59m
Max flow rate: 10000L/H
Solar panels: High efficiency mono silicon solar panels
Pure copper Motor power: 750W
Mppt inverter: 1100w
Solar input voltage: 160V
Open circuit voltage (Voc): 230v
Working time:During the sunshine
Pump material: 304 stainless steel
46m 10000L/H 0.75HP solar submersible pump specifications
Model: WHC 6/7-0.55/0.75HP solar submersible pump
Max head rate: 46m
Max flow rate: 10000L/H
Solar panels: High efficiency mono silicon solar panels
Pure copper Motor power: 550W
Mppt inverter: 750w
Solar input voltage: 160V
Open circuit voltage (Voc): 230v
Working time:During the sunshine
Pump material: 304 stainless steel
How does our solar pumping system work off-grid?
Solar energy can power almost any solar water pump system. In fine weather, the solar water pumping system is connected to the solar panel, which can provide sufficient power supply by using the solar panel. So as to realize off-grid work. Ensure that the solar pump has enough water to meet the water demand on cloudy days.

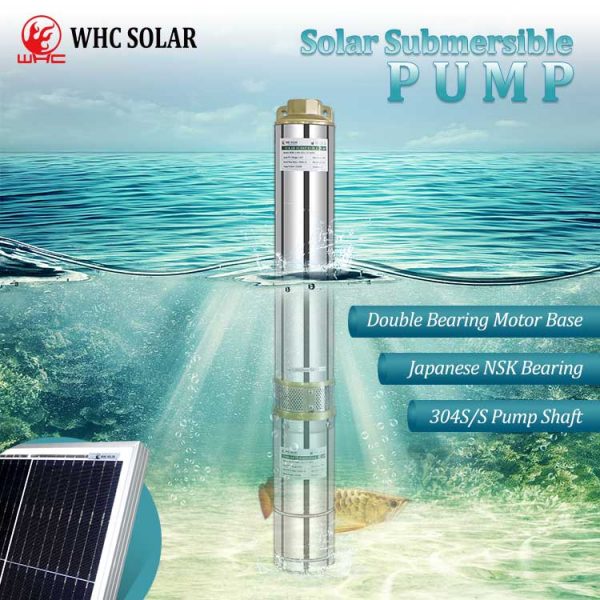

WHC 10000L 0.75 to 7.5HP 46 to 290m submersible AC solar pump kit
Our WHC SOLAR 10000L series off-grid solar submersible pump kits have undeniable advantages in terms of economy and usability. And we provide the best configuration of off-grid solar pumps in terms of systems and accessories. From solar water pumps to solar modules, we can enable your home to achieve everything you need for an off-grid power supply system. Make water use no longer difficult.
The best configuration of our off-grid solar pump
High-efficiency monocrystalline silicon solar panels
mono solar panel is a device that uses the sunlight effect to directly convert solar energy into electrical energy. Our off-grid solar pump panels have the characteristics of long service life and high cleanliness. The service life is at least 20 years, and the shelf life is 10 years.
Solar water pump inverter (VFD)
The solar water pump inverter obtains direct current directly from the solar panel, converts it into alternating current, and supplies it to the pump to pump water. It maximizes the performance of off-grid solar water pump during the day, and has protection functions such as lightning protection, overvoltage, undervoltage, overcurrent, and overload. Make use safer and more efficient.
Advantages and characteristics of solar water pump
1. Our solar water pump is green and environmentally friendly;
2. No noise, quieter to use;
3. Long service life and low maintenance cost;
4. No rust, corrosion resistance, long-term work under water is not afraid of rust;
5. High cost performance, one-time investment, long-term use;
6. Factory direct sales, price concessions, etc.
It's not only a solar water pump for agriculture
But also a solar pump for home, solar pump for deep well, solar pump for pond, and solar pumps for irrigation, etc.
